Getting started
Welcome to Firetail
Firetail provides you with a fully featured environment for the visualisation and annotation of modern, large-scale GPS, burst and tracking data.
Firetail is meant to work completely interactive and connects to Movebank directly. Event data, Acc bursts and Reference data can be explored.
This manual covers should cover all current Firetail features. If something is missing, please let us know.
Overview of Firetail

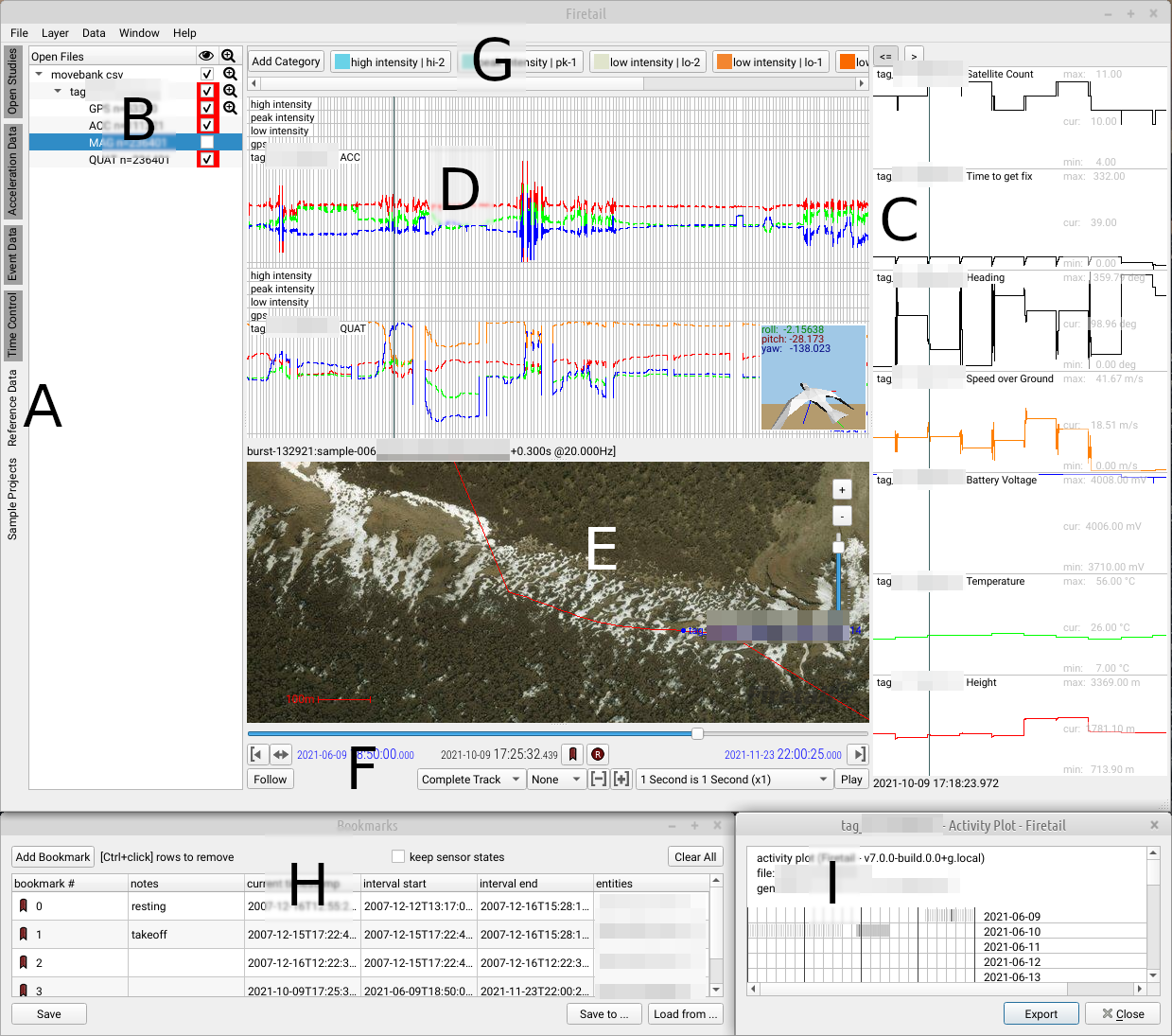

In the screenshot above we highlighted the most essential elements of firetail:
| Section | Name | Description |
|---|---|---|
| A | Window Selection Tabs | hide/show panels |
| B | Open Files Panel | activate data subsets, bursts, focus regions |
| C | Event Data Panel | event data for a given timestamp |
| D | Acceleration Data Panel | acceleration data |
| E | Map Window | Visual representation of GPS tracks and tags/individuals |
| F | Time Control | control the active timestamp, time bracketing, speed |
| G | Burst Annotations | select and annotate GPS data |
| H | Bookmarks | time range bookmarks |
| I | Activity Plot | activity analysis |
For quicker workflows memorize Firetail’s Keyboard Shortcuts

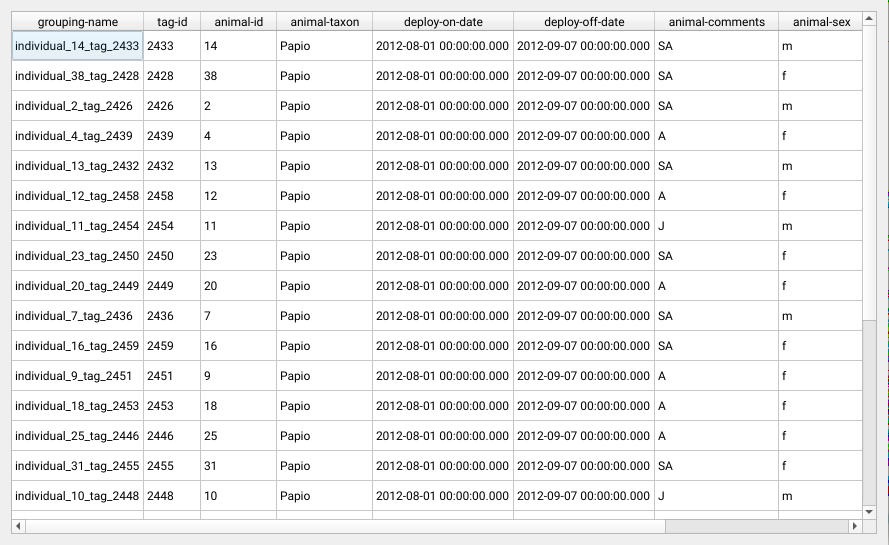

If annotation data is present for a project Firetail can show this data as a table (starting from v3).
For a more detailed description see section Reference Data
Video Tutorials
Get started with our video tutorials!
Installation
Obtain and install the latest copy of Firetail from:
Licensing
Small-scale projects with up to 100K GPS/1Mio ACC Samples can obtain the ‘Firetail Free Edition’.
If you hit this limit a license is required. License holders profit from our expert support. We have long-time experience in scientific setups, data science, GIS and general data processing.
For more details, see our licensing section.
Quick start
Sample projects
For a quick start use one of our sample projects.
Where can I get data? Where can I archive my data?
The Movebank database is your first stop to download, archive and process datasets:
Loading a project
Loading a project from Movebank
Use
File > Download Data by Tag IDFile > Download Data by Individual IDFile > Download Data by Deployment ID
to download movebank data using your account. The account is required to access the API. See also Section Movebank Data
Loading data without movebank
Firetail works best with movebank. So creating an account does make a lot of sense. Yet the Movebank - Repository and our sample projects will provide a good start as well.
Firetail can work with local datasets and raw tag data for several manufactures.
Window Selection Tabs
| Tab | Usage |
|---|---|
| Sample Projects | show the sample projects |
| Reference Data | If available, show a table of project reference data (meta data) |
| Time Control | show/hide Time Control |
| Event Data | show/hide the Event Data Panel |
| Acceleration data | show hide Acceleration Data Panel |
| Open Studies | show data associated to the current study, Open Files Panel |
Panels
Firetail provides panels/windows for all essential features. You may switch acceleration and event panels to window-mode and place them to get the layout that best suits your requirements (menu: Window > Acceleration Data and Window > Event Data)
Visible Layers
Firetail provides you with several layers of information like landmass, water, satellite images and sunrise information.
Working with local data
Firetail is designed with Movebank in mind in terms of download and annotation of published datasets. Nonetheless local data can be imported.
See section Working with local data for more details.
Previously downloaded movebank sets can be accessed directly from the File > Open Downloaded Data menu.
Closing a project
Use File > Close to close the currently opened project.
This option will be triggered automatically on certain events.
