Event data window

Some tags support the recording of event data.

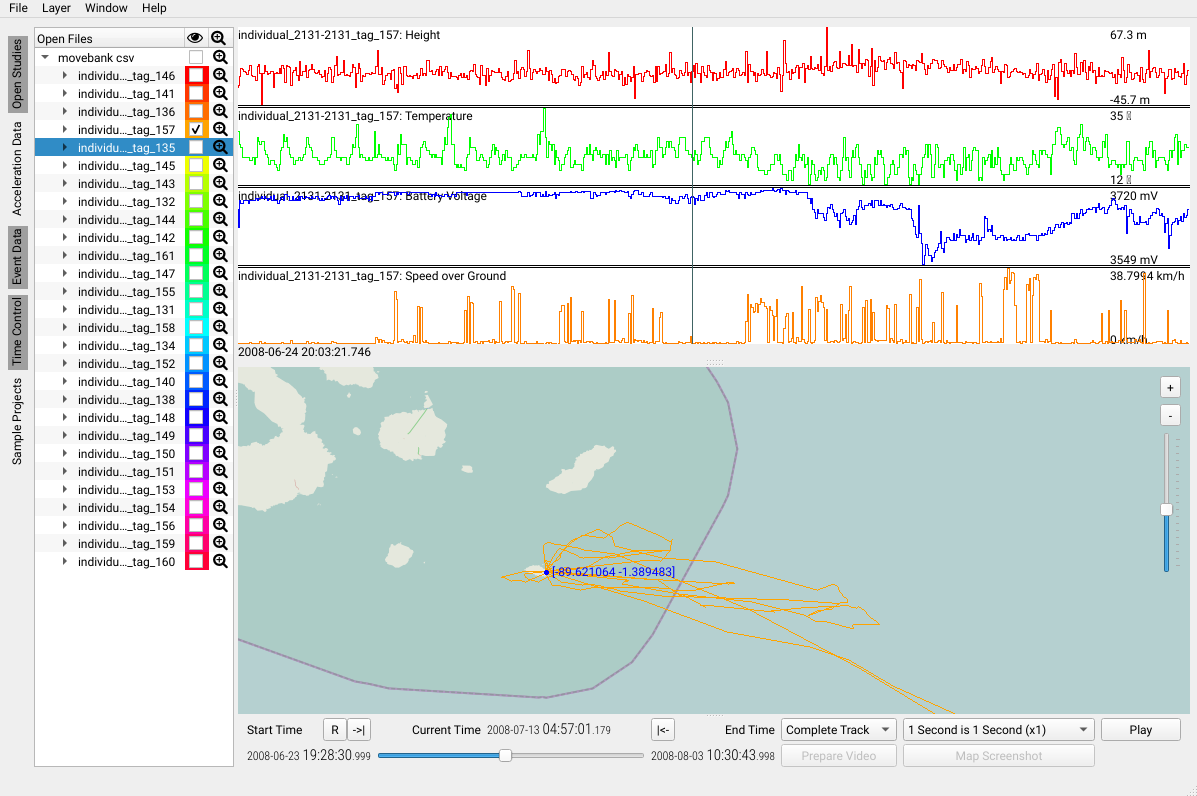

Inspecting event data

If events are available in your dataset you can visually inspect the events by selecting Event Data in the Window Selection Tabs (vertical left). Alternatively, you may use the menu entry Windows > Event Data to select how to see the event data (top, right, or as floating window).

Note: For larger sets of tags, a selection of subsets is helpful

Focus timestamps

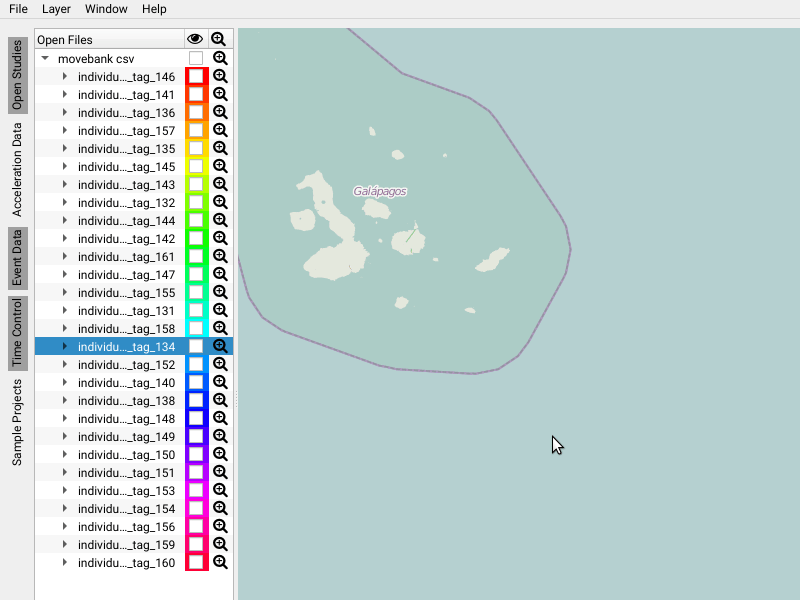

It is possible to focus a timestamp in the event data by double clicking in the event window. This will highlight the corresponding events within the map.

A double click selection of a track point on the map will show a vertical bar in the event window that marks the respective timestamp as well.
